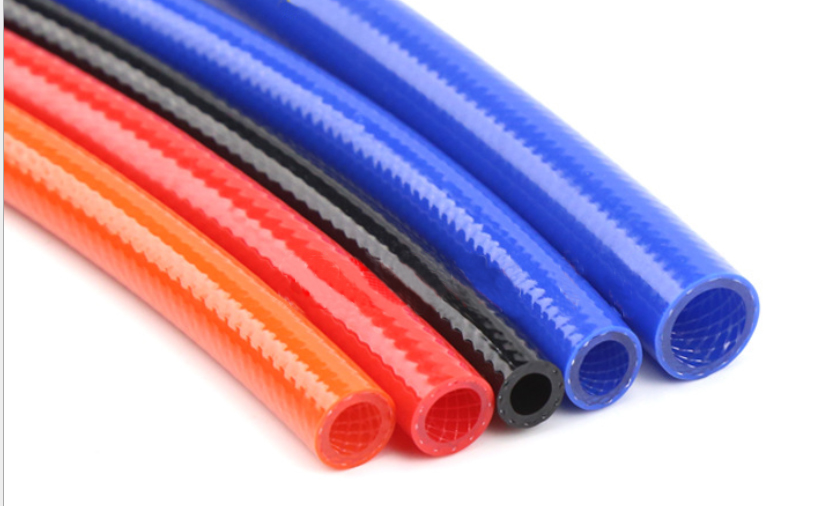

High Pressure PU Hose

2D download:

High Pressure PU Hose

Ordering Code

*working pressure to 20bar, Bursting pressure up to 60bar.

*With 100% viginal PU material.

*High flexible

*Smooth and shinny surface !

APPLICATION: For conveying air, gas/oil at pneumatic industry, air compressors, Auto Hose Reel and agriculture with high pressure requirements.
Colors available: Blue, Transparent, etc.
Working pressure: 15bar ---20bar,
Burst pressure: 60bar
Temperature Range: -20--+60º C

Code	Size(mm)		Tolerances	Standard Length(m)	Working Pressure @ 23ºC	Burst Pressurre @ 23ºC
Code	O.D	I.D	Tolerances	Standard Length(m)	Working Pressure @ 23ºC	Burst Pressurre @ 23ºC
PUB0805	8	5	±0.10	100	15	50
PUB1065	10	6.5	±0.10	100	20	60
PUB1165	11	6.5	±0.10	100	20	60
PUB1208	12	8	±0.12	100	15	45
PUB1410	14	10	±0.15	100	15	45
PUB1612	16	12	±0.15	100	12	36
